Source portable 130 x ray

  • Model: SR-130
  • Units in Stock: 98

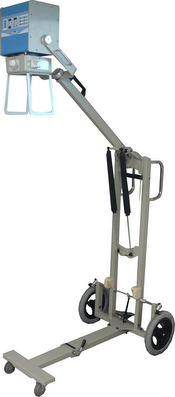

The SR-130
Provides higher power, state of the art technology, system reliability and low maintenance, all in a small footprint, lightweight package.

The SR-130 was designed with agility in mind. It's compact, lightweight construction makes it easy for the operator to move the system effortlessly. Delivering maximum mR/mAs, the SR-130 produces 3 kW of power that provides hospital quality imaging, performed anywhere, anytime a Portable X-Ray System is transported to a patient.With it's 3 kW output power, the SR-130 is an ideal system for organizations
considering the purchase of a CR-System. CR-Systems currently operate at 200 speed. The SR-130 provides the power required to compensate for this slower operating speed without compromising image quality. The SR-130 is a user friendly system designed for high reliability and the durability required for the Diagnostic Outreach market. The SR-130 can be used in hospitals, clinics, nursing homes, private homes, orthopedic practices, sports medicine, correctional facilities and military field deployable applications.


Generator
High frequency resonant inverter - 3.0 kW

Input Voltage 115/230 VAC, 50/60hZ kVp Range 40 - 100 kVp, adjustable

in 1 kV increments - closed loop regulation

mA Range Fixed, 15 mA and 30 mA closed loop regulation

mAs Range 0.15 - 120 Exposure Time 0.01 - 4.00 seconds Indicators Digital display of kVp, mAs

and Time. X-Ray, Ready, mA Station and Fault indicators.

Exposure
Detachable two-position

Switch X-Ray Tube
Stationary Anode 110 kVp

Filtration 2.7 mm al minimum Target Material Tungsten Anode Capacity 30,000 HU Storage

Focal Spot 1.0 mm Target Angle 15deg

Collimator
Advantech R72/32-ET Tape Measure SID Measurement

Inclinometer Angle Measurement

Model SR-130

Travel Stand

Min. F/S to Floor 13" / 33 cm Max. F/S to Floor 78" / 198 cm Hor. Ext. of F/S 21" / 53 cm Hor. Rotation 200deg Tube Rotation 270deg

System Weight
100 lbs. / 45 kG

Price was changed recently, so please send us email to sales@mobile-cr.com that we could provide you with update price information.

Add to Cart:



This product was added to our catalog on Friday 16 March, 2012.
